1473410-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1473410-1
Datasheet:
Description:

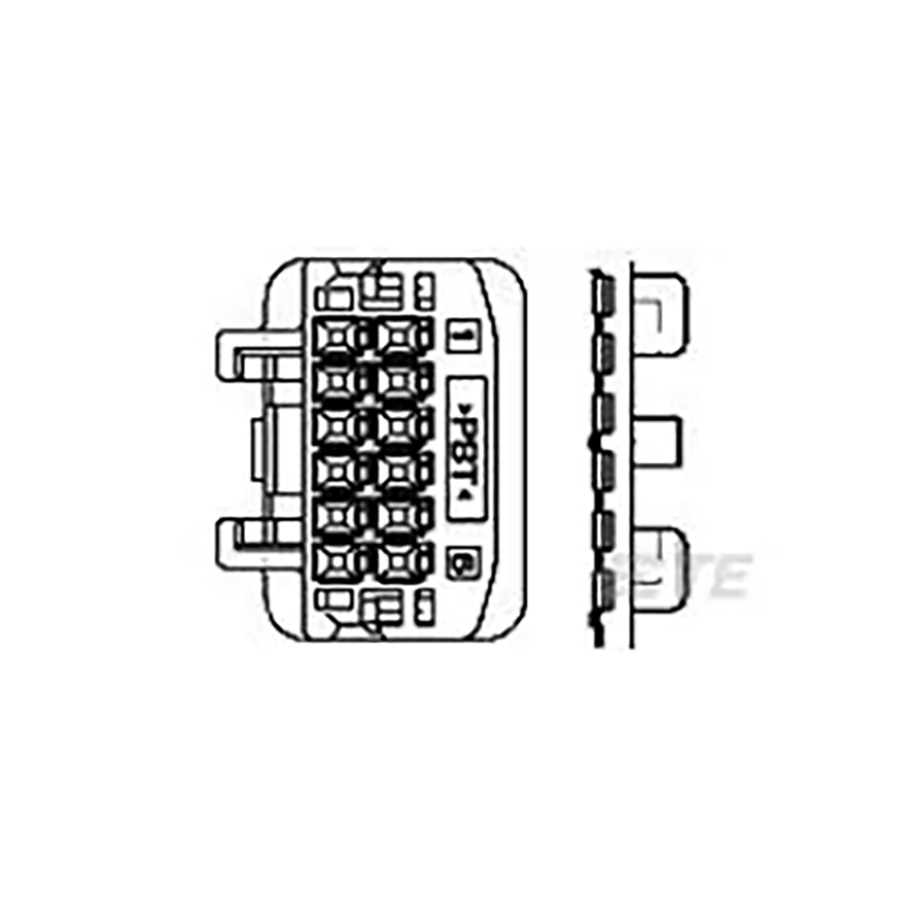

Headers and Wire Housings Panel Receptacle, Tab Number of Positions:16 Pitch:2.2098 mm
| Parameter | Value |
|---|---|
| Length | 33.909 mm |
| Width | 23.0124 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 14.7 mm |
| Packaging | Bulk |
| Depth | 33.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 2.2098 mm |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Number of Contacts | 16 |
| ELV | Compliant |
| Body Material | PBT |
| Connector Type | Receptacle, Tab |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 4.2418 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Natural |
| Mating Tab Width | 635 µm |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 758
Distributors
pcbx
pcbxUnit Price$0.72182
Ext.Price$0.72182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72182 | $0.72182 |
| 10 | $0.61286 | $6.12860 |
| 25 | $0.56559 | $14.13975 |
| 50 | $0.52196 | $26.09800 |
| 100 | $0.48170 | $48.17000 |
| 300 | $0.46537 | $139.61100 |
| 500 | $0.44960 | $224.80000 |
| 1000 | $0.43272 | $432.72000 |
